제품 상세 정보:
|
| 제품 이름: | 녹슬지 않는 강철 45 각도 엘보 | 소재: | 스테인레스 강 304/316 |
|---|---|---|---|
| 패키지: | 나무 상자 | 배달 시간: | 15-21일 |
| 포장: | 목재 케이스 | 적용: | 중공업, 일반 산업, 석유와 가스 |
| MOQ: | 1 PC | ||
| 강조하다: | 무선 팔꿈치 스테인리스 스틸 파이프 픽팅,Sch20 스테인리스 스틸 파이프 픽팅 |
||

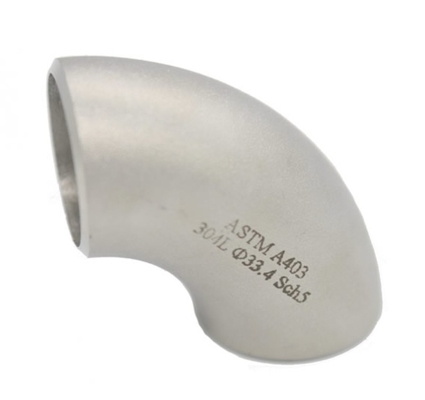

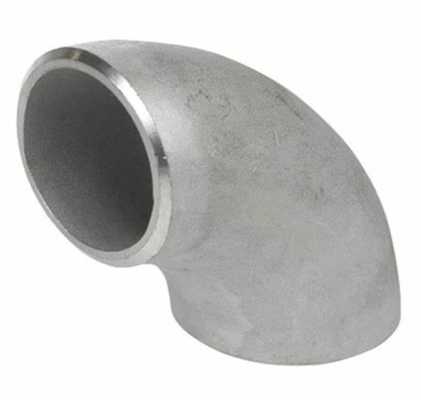

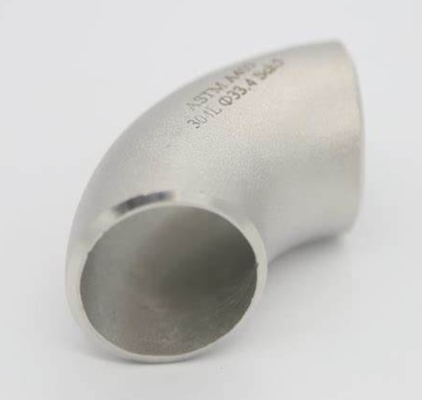

METAL Stainless Steel Pipe Fittings Elbow Butt-Weld Fittings 45/90 Degree Sch20 Seamless Elbow
Product Description
| Products | Super Duplex Stainless Steel Elbow Cronifer1925HMO B366 WP1925N UNS 08926 | |
| Item | Elbow L/R S/R,Equal Tee,Reducing Tee,Concentric Reducer,Eccentric Reducer,Cap, Bend | |
| Standard | ASME | ANSI B16.9,ANSI B16.28,MSS-SP-75 |
| DIN | DIN2605,DIN2615, DIN2616, DIN2617, DIN28011 | |
| SGP | JISB2313 | |
| EN | EN10253-1 EN10253-2 | |
| Material | ASME | A234 WPB,A234 WP1,A234 WP5,A234,WP9, |
| A234 WPB11,A234 WPB12,A234 WPB22,WP91, | ||
| A420,WPHY42,WPHY52,WPHY60,WPHY65, | ||
| WPHY70,WP304,WP304L,WP304H,WP316, | ||
| WP316L,WP321,WP347,WP347H | ||
| DIN | ST37.0,ST35.8,ST45.8,S235JR,P235GH,P265GH, | |
| 10CrMo910,15CrMo,12Cr1MoV | ||
| JIS | JIS G3454,STPG370,TPG410 | |
| Surface | Black paint/bright paint/Galvanized | |
| Marking | As customer’s requirements | |
| Package | By strong plywood cases | |
| Delivery | Within 30 days | |
| Certificate | PED, ISO9001:2008 | |
Introduction of Elbows
In a pipe system, an elbow is a pipe fitting that changes the direction of the pipe. According to the angle, there are three most commonly used elbows: 45 ° and 90 ° and 180 °. In addition, 60 ° and other abnormal angle elbows are also included according to the needs of the project. Elbow materials include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics.
The connection methods with pipes include direct welding (the most commonly used method), flange connection, hot melt connection, electric fusion connection, threaded connection and socket connection. According to the production process, it can be divided into: welding elbow, stamping elbow, pushing elbow, casting elbow, butt welding elbow, etc. Other names: 90 degree elbow, right angle bend, etc.
When the temperature reaches 800-1500 ° f (427-816 ° C) and chromium carbide precipitates, it can still maintain good resistance to intergranular corrosion. Due to the addition of titanium in the composition, the 321 alloy can still maintain stability when chromium carbide is formed.
321 alloy stainless steel has advantages in high temperature environment due to its excellent mechanical properties. Compared with 304 alloy, 321 alloy stainless steel has better ductility and stress fracture resistance.
FOQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
