제품 상세 정보:
|
| 프로드컷: | Ｕ 핀 관 | 모양: | 둥근 |
|---|---|---|---|
| 재료: | 구리 또는 알루미늄 | 단면 모양: | 둥근 |
| 헤드 코드: | 둥근 | 핀 두께: | 0.5mm-3mm |
| 핀 엣지: | 직선/파문 | 월트힉네스스: | 0.3-0.5mm |
| 튜브 연결: | 이음새가 없는 용접된 / | 연결: | 용접된 |
| 기술: | 냉간 압연 | 색상: | 은 |
| 핀타입: | 알루미늄 지느러미 | 크기: | 맞춤형 |
| 이차적이 또는 전혀: | 비2차됩니다 |

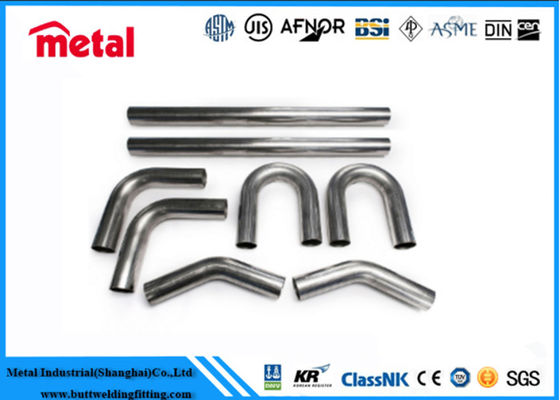

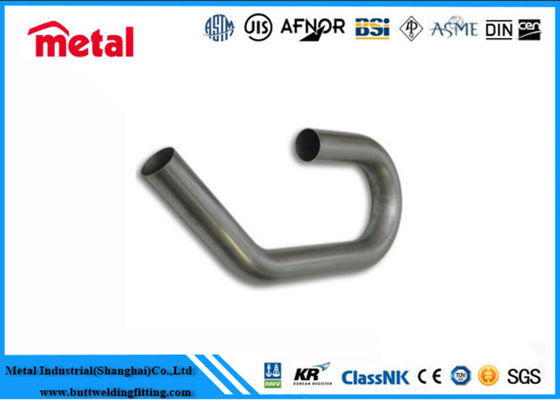

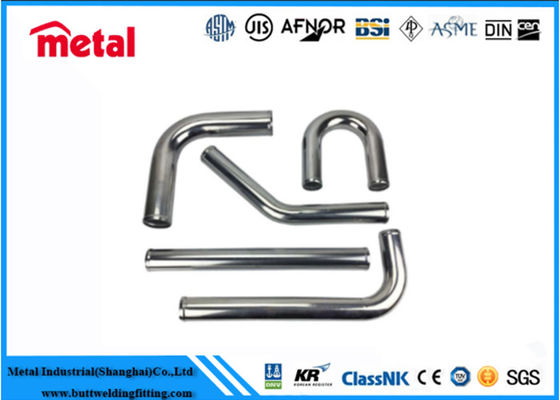

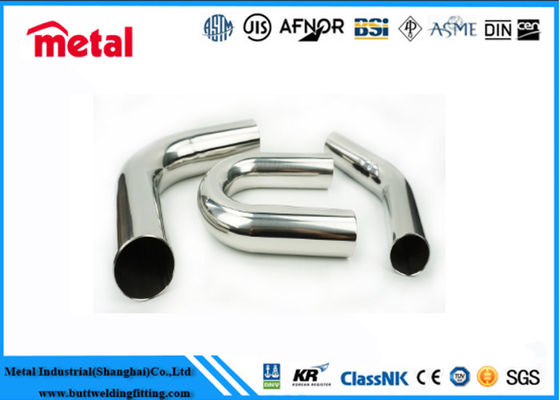

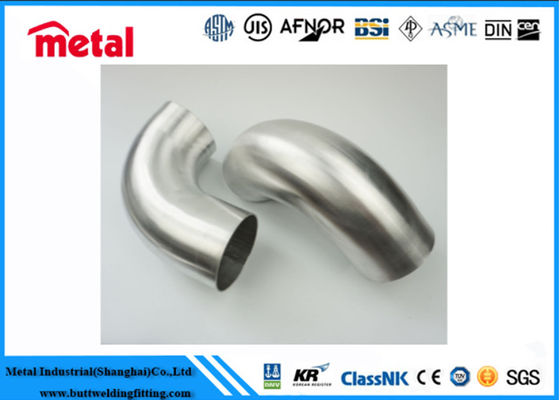

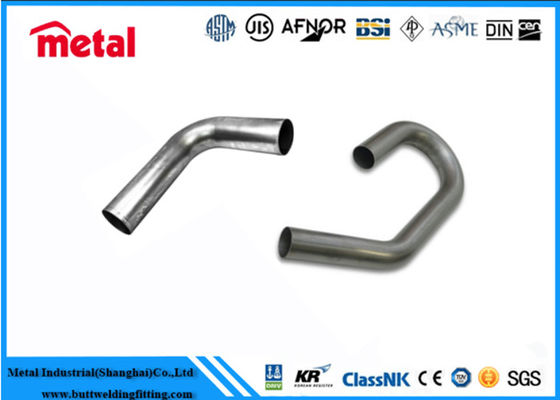

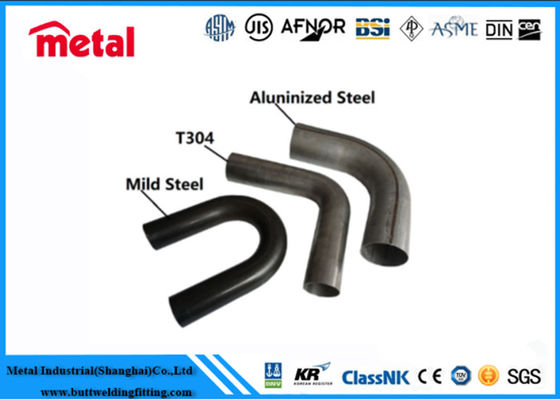

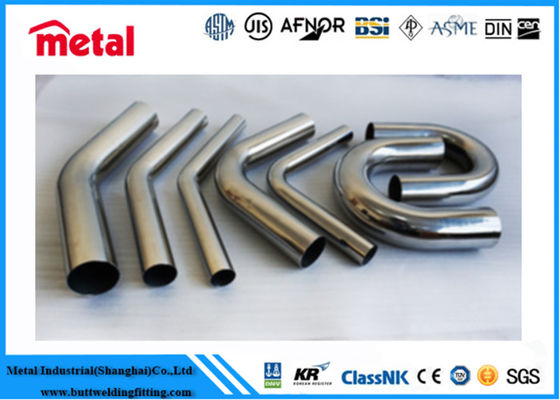

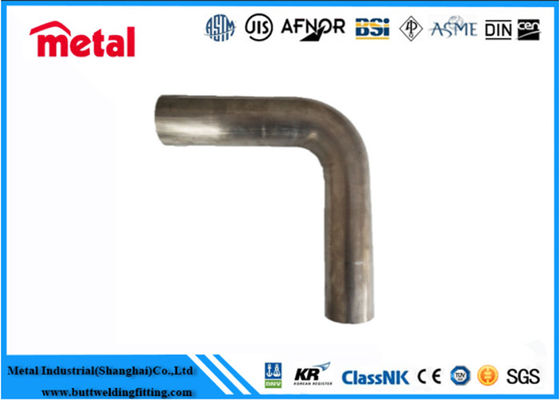

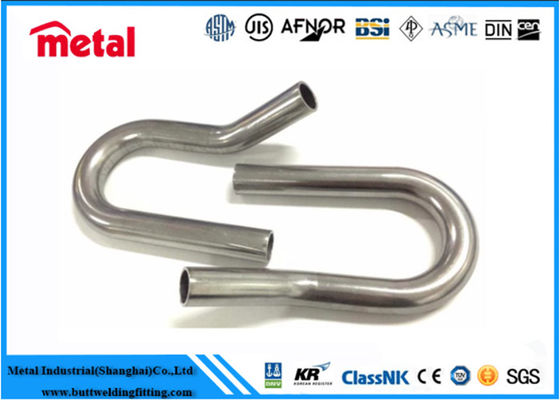

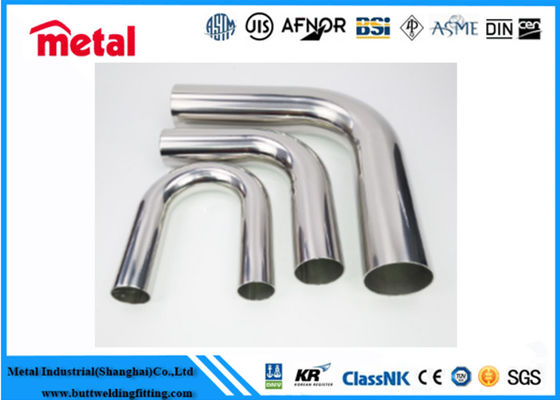

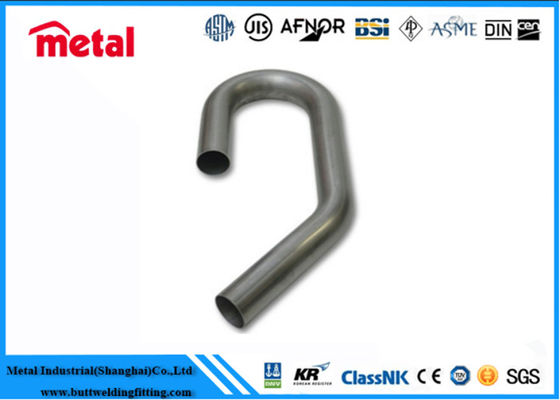

A/SA789 UNS S31803 U-Bent Tubes Duplex Stainless Steel for Heat Exchanger
| Priducts | Dimensions | Standards | Materials | Remarks | ||
| O.D | W.T | Length | ||||
| U-bent Tubes for Heat Exchanger | 12.7-76.2mm (1/2"-3") |
0.5-5.16mm (0.02"-0.203") |
Leg Length: 15.24m(50') Total Length: 32.00m(105)' |
ASTM/ASME A/SA213 | T5, T11,T12, T22, T9, TP304/304L, TP304H, TP316/316L, TP347/347H, TP316Ti, TP321/321H, TP310S | Seamless Ferritic and Austenitic Stainless Steel U-bent Tubes |
| ASTM/ASME A/SA249 | TP304, TP304L, TP316, TP316L…… | Welded Stainless Steel U-bent Tubes | ||||
| ASTM/ASME A/SA789 | UNS S31803/32205, UNS S32750…… | Duplex Stainless Steel U-bent Tubes | ||||
| ASTM/ASME A/SA163 | Monel400, UNS N06600, 625, Incoloy800/800H, 825…… | Seamless Nickel Alloy U-bent Tubes | ||||
| ASTM/ASME A/SA268 | TP405, TP409, TP410, TP430, TP439…… | Ferritic and Martensitic Stainless Steel Seamless U-bent Tubes | ||||
| Seamless and (Welded) Re-drawn Stainless Steel Feed Water Heater U-bent Tubes | 12.7-25.4mm (1/2"-1") |
0.7-3.05mm (0.028"-0.12") |
Leg Length: 15.24m(50') Total Length: 32.00m(105)' |
ASTM/ASME A/SA668/213 ASTM/ASME A/SA803 | TP304, TP304L, TP304LN TP316, TP316L, TP439 | Low Pressure Feed Water Heater of Thermal Power Station |
Stainless Steel ubend :
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, 316TI, 316H, 304L
Carbon Steel ubend
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6
Alloy Steel ubend
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel ubend
ASTM A 815 UNS NO S 31803, S 32205, S 32760, S 32750
Copper Nickel
C70600(90:10), C71500(70:30), C71640.
Nickel Alloy
Standard
· ASTM / ASME SB 336
· UNS 10276 (HASTELLOY C 276 )
· UNS 2200 (NICKEL 200 )
· UNS 2201 (NICKEL 201 )
· UNS 4400 (MONEL 400 )
· UNS 8020 (ALLOY 20 / 20) CB 3
· UNS 8825 INCONEL (825 )
· UNS 6600 (INCONEL 600 )
· UNS 6601 (INCONEL 601 )
· UNS 6625 (INCONEL 625 )
· UNS 5500(MONEL K500)
· UNS 8800(INCONEL 800)
· UNS 8810(INCONEL 800H)
Packing and Shipping
Package:Standard export carton packing.
Delivery time:stock 7-10 workign days after confirming order,detail delivery date should be decided according to production season and order quantity.
1) for R 100 mm +/- 3 mm
2) for R ≥ 100 mm +/- 5 mm
4). U bend Pipe Straightness tolerance max. 1,5 mm per 1 m
U Bend Tube ends: plain, vertically cut to the tube axis
U Bend Tube OD in mm can be bent upon agreement: 15.8 16.0 17.0 18.0 19.05 20.0 21.3 25.4 26.7 31.8 32.0 38.1mm
U bend Tube Initial Length
Maximum lengths of 27000mm can be supplied on request
